Revolt 72V Yamaha 700 Raptor Conversion Kit

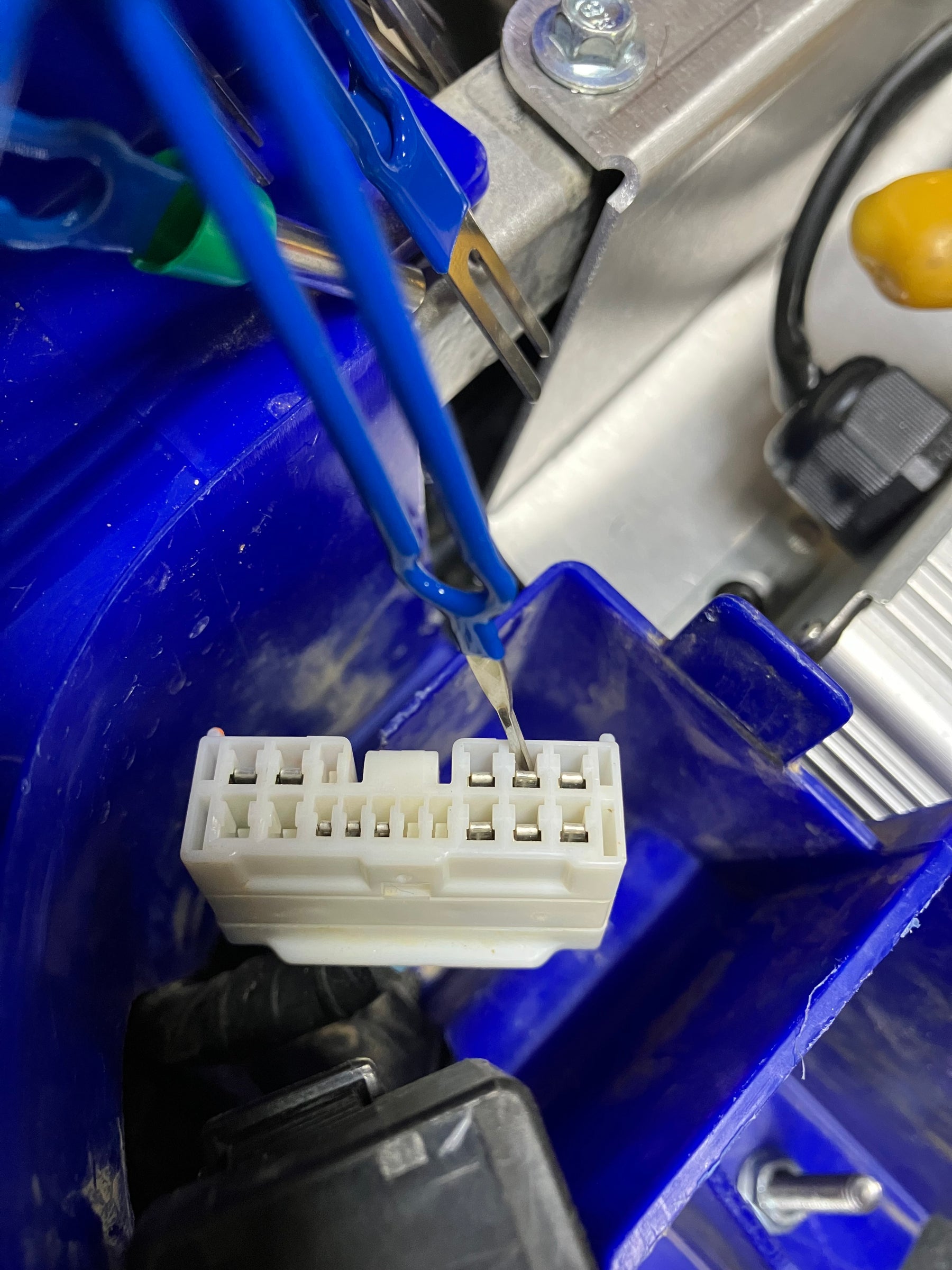

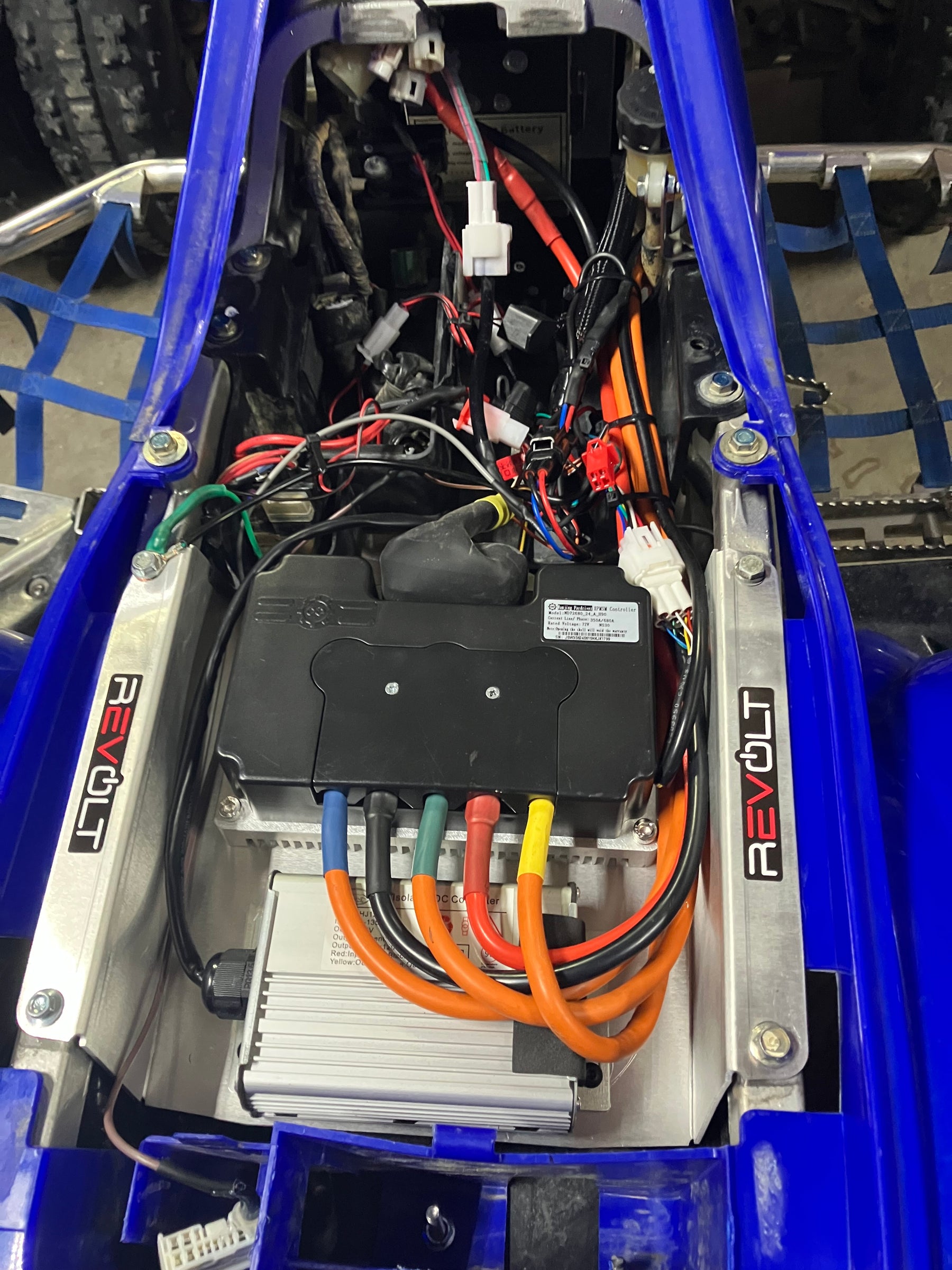

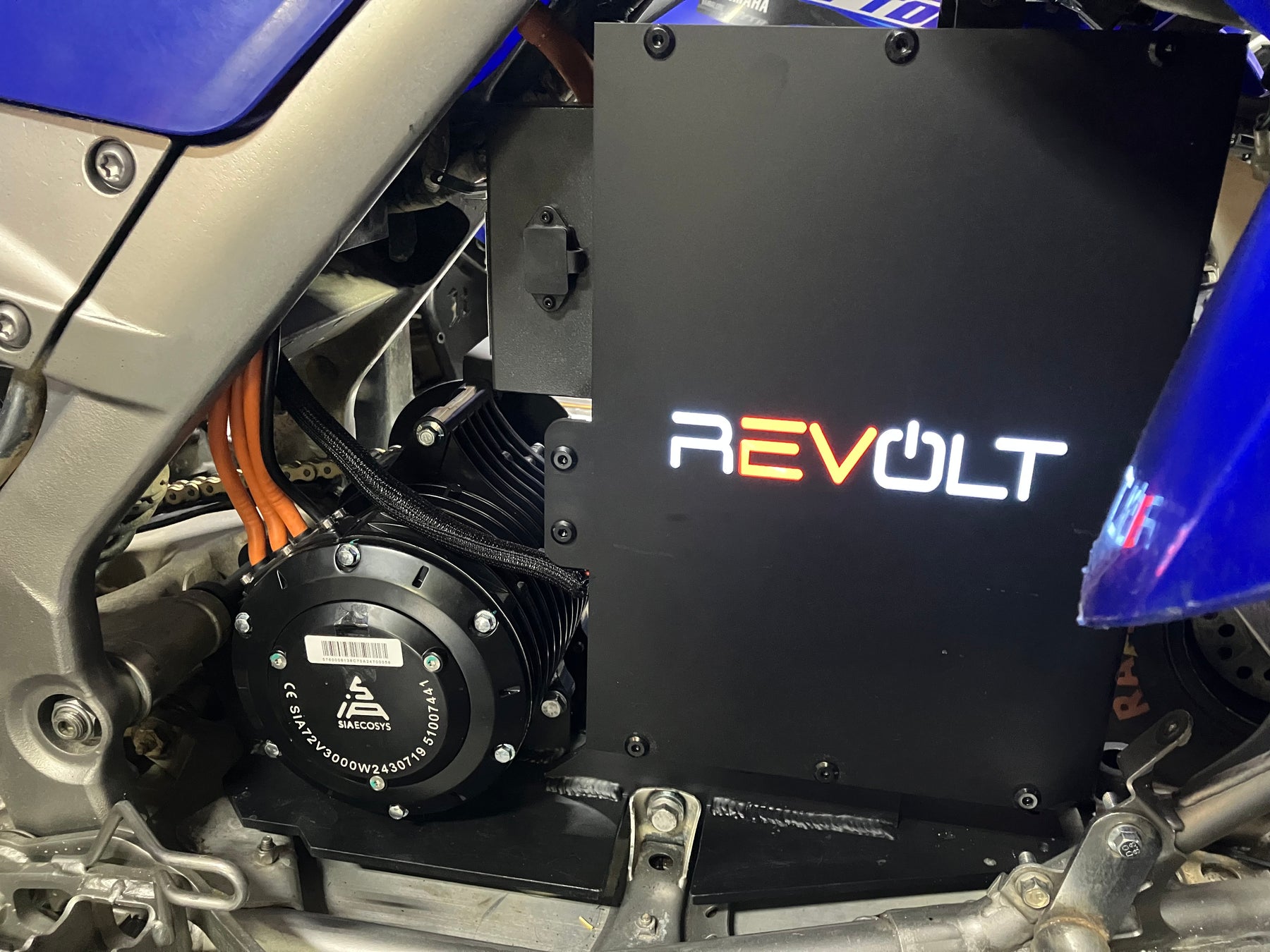

100% bolt in kit.  Pre-wired and programmed. All required parts included, just add a raptor 700. Simply connect 3 wires to the existing Yamaha harness. Connect the two wires the go to the old key switch.  4 bolts (included) and your swingarm bolt mount the motor and battery in the frame.  The controller and DC converter are mounted in the air box location.

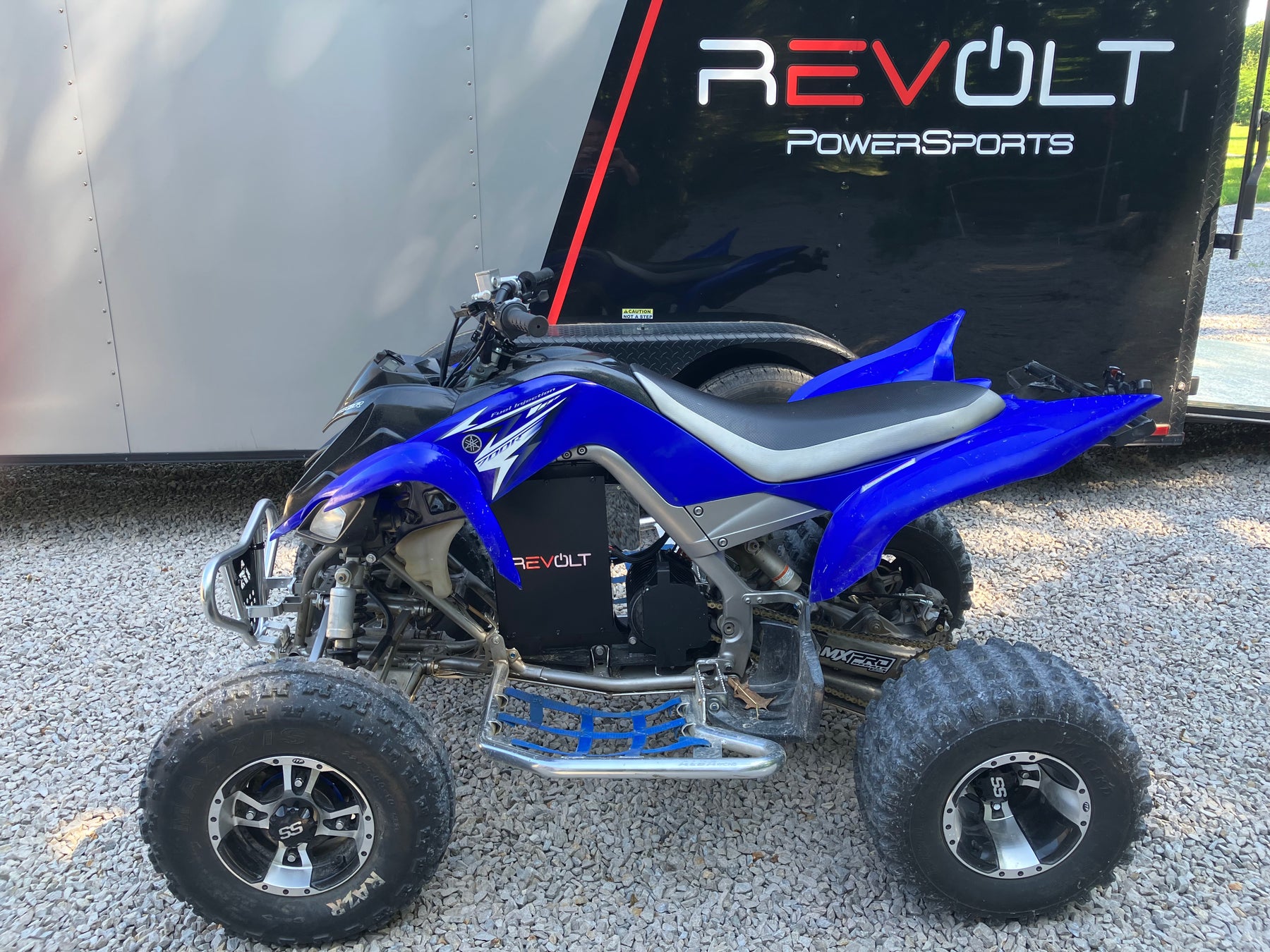

A Raptor with this kit weighs 401 lbs.  That’s 19 lbs. lighter than the original gas version with a full tank of fuel.

Motor: QS 138 70h v3

Battery: 72v 60ah 300amp ANT BMS. (It’s the battery used in our RTX-1 with the handle removed.)

Controller: Fardriver 72680

Charger: 110v 15-amp   4 hour or less charging cycle.

Also included: color gauge, 3 speed switch, thumb throttle, kill switch, key switch, dc/dc converter (to power your existing lights)

Also included (Made in USA): motor fixture, battery box, dc/dc converter and controller mounting plate, gauge mount, and chain guard.
