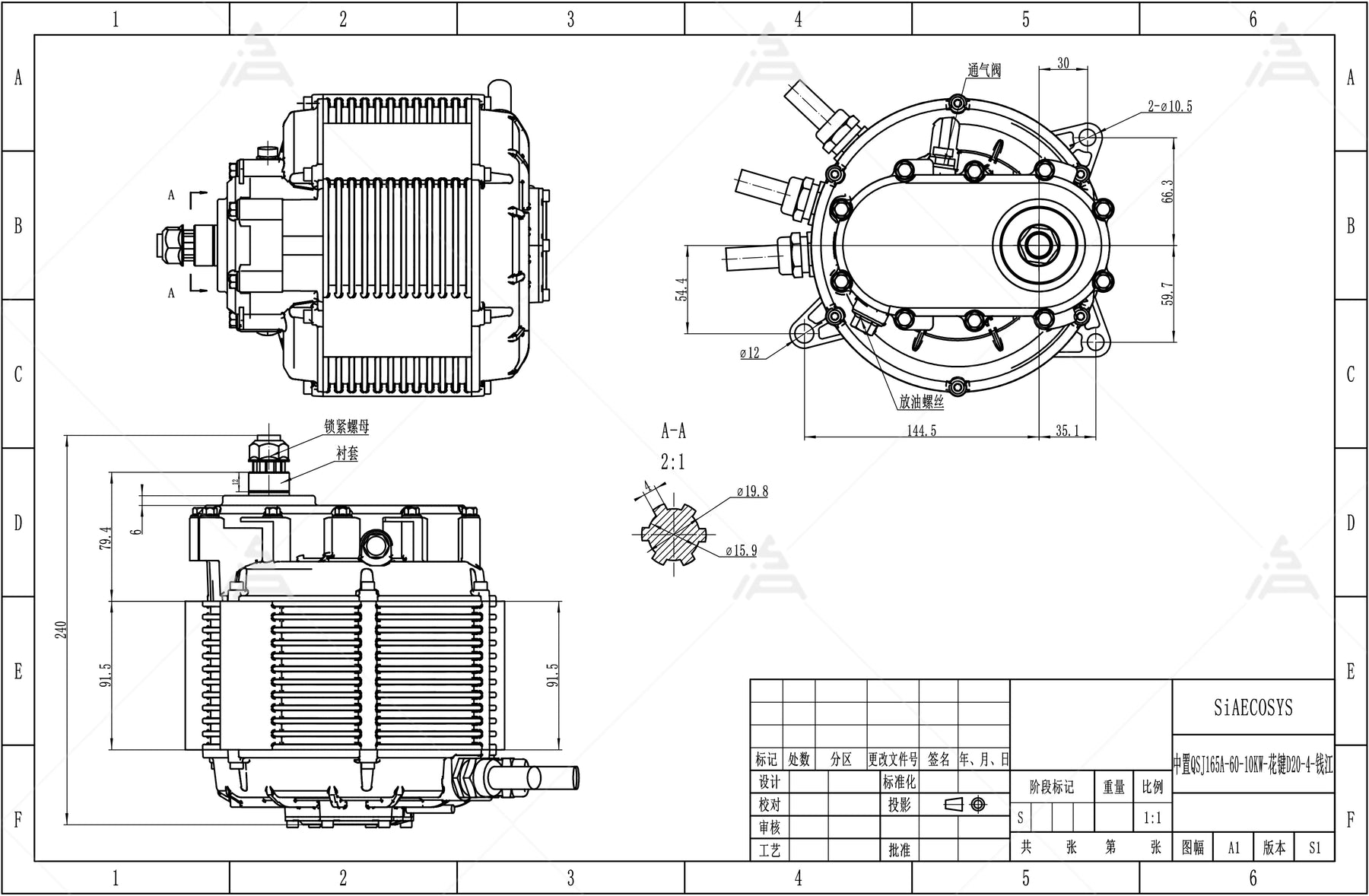

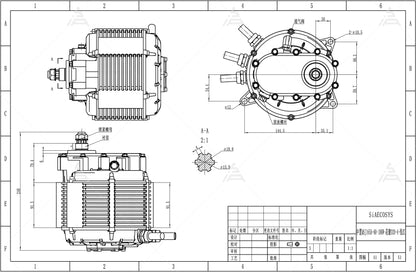

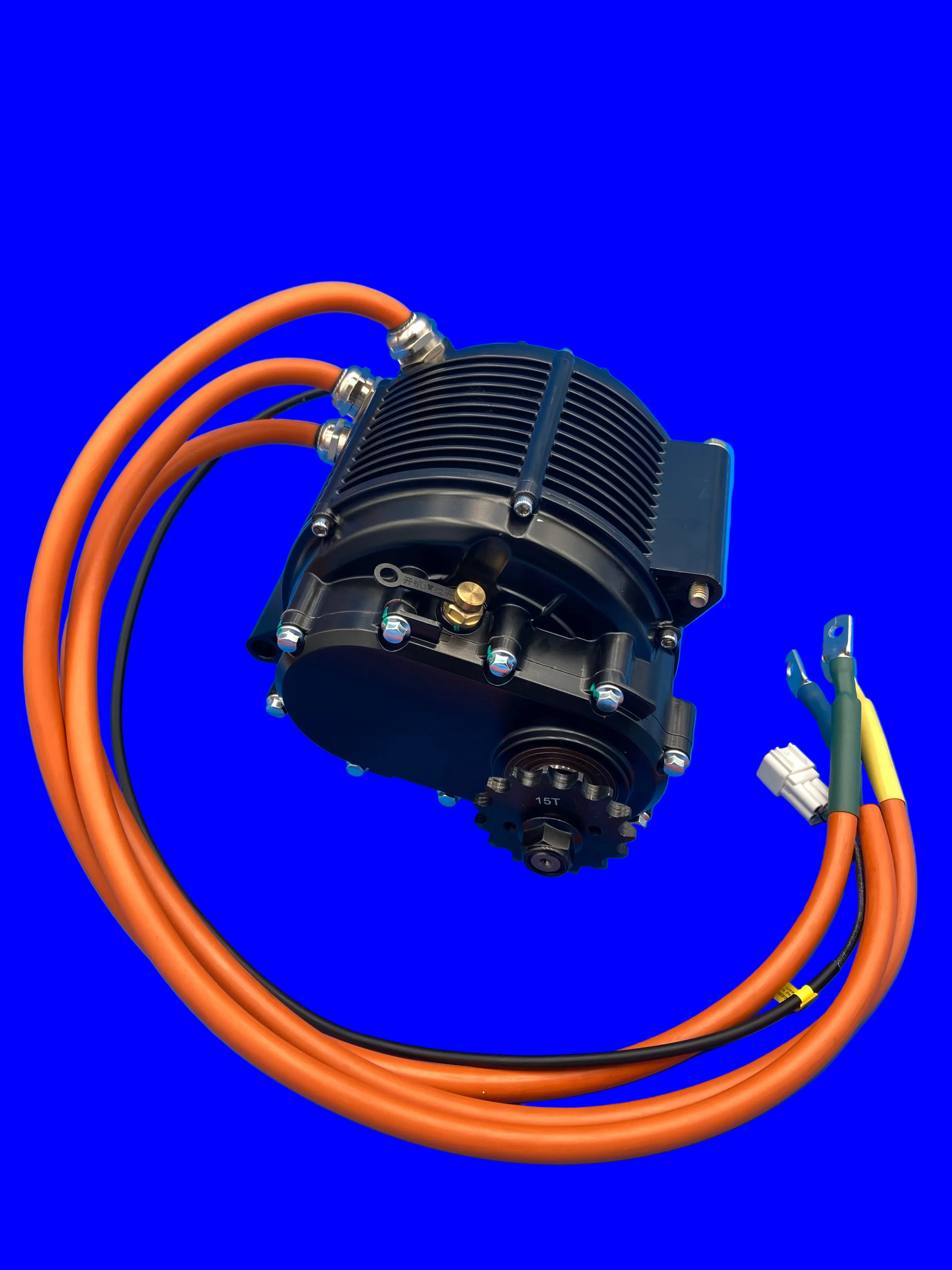

QS165 60h V3

New 2026 design.   PMSM.

5 pole pairs.

Temp Sensor #5 in Fardriver.

Hall type position sensors.

Due to the large wires and lugs on this motor, you must use a Fardriver 721000  or larger.

15 tooth 428 Sprocket included.  Uses a standard 20mm pit bike sprocket.

Be sure to remove rubber seal from oil vent on top after installation.

When changing oil use 85w-90 100ml.

Rated Power: 12kw watts continuous, 20kw peak

Rated Voltage: 72 volts (nominal)  48v Min.  120v Max.

32.2 lbs.
