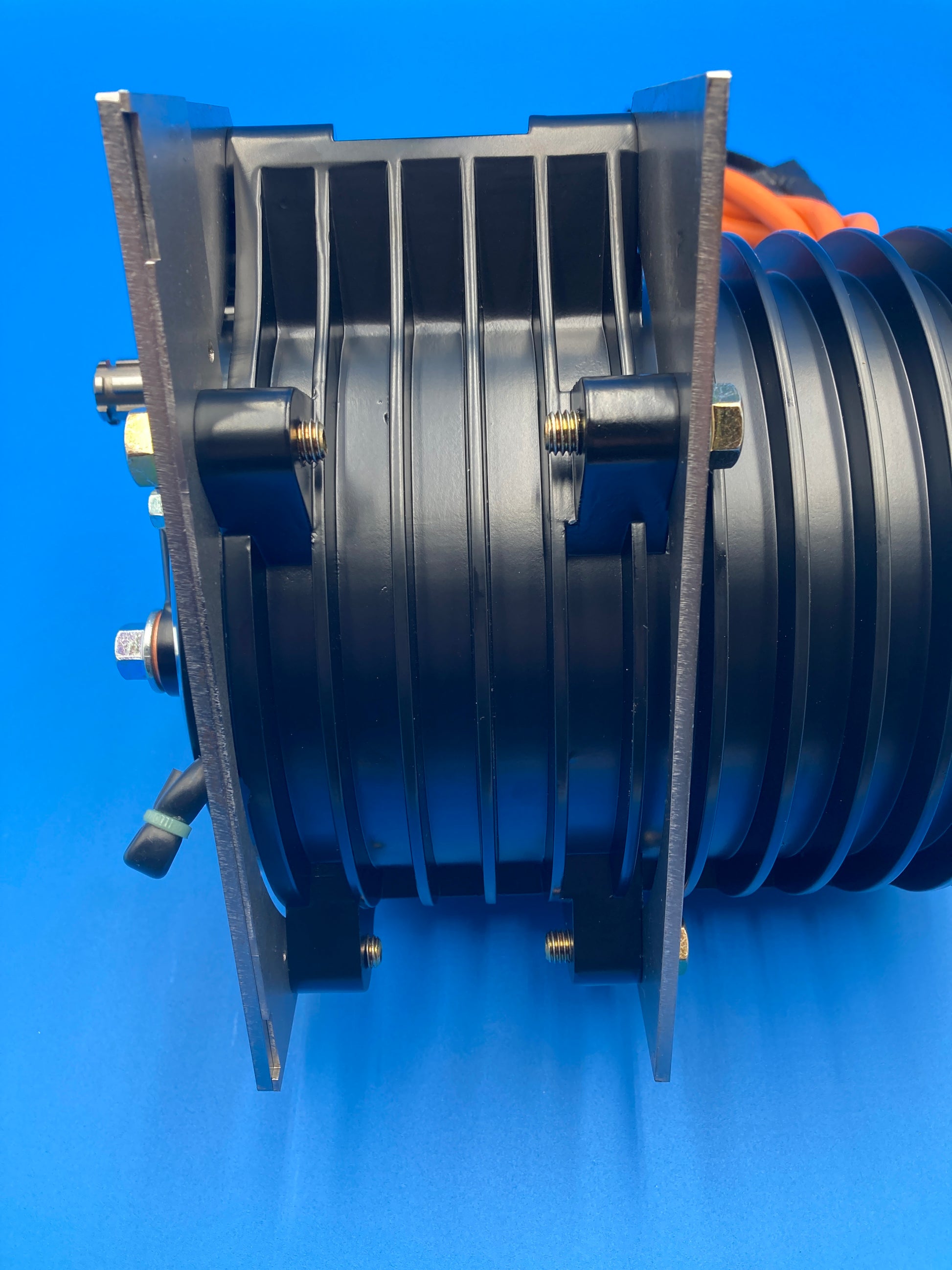

QS138 70H V3 Motor Mounts

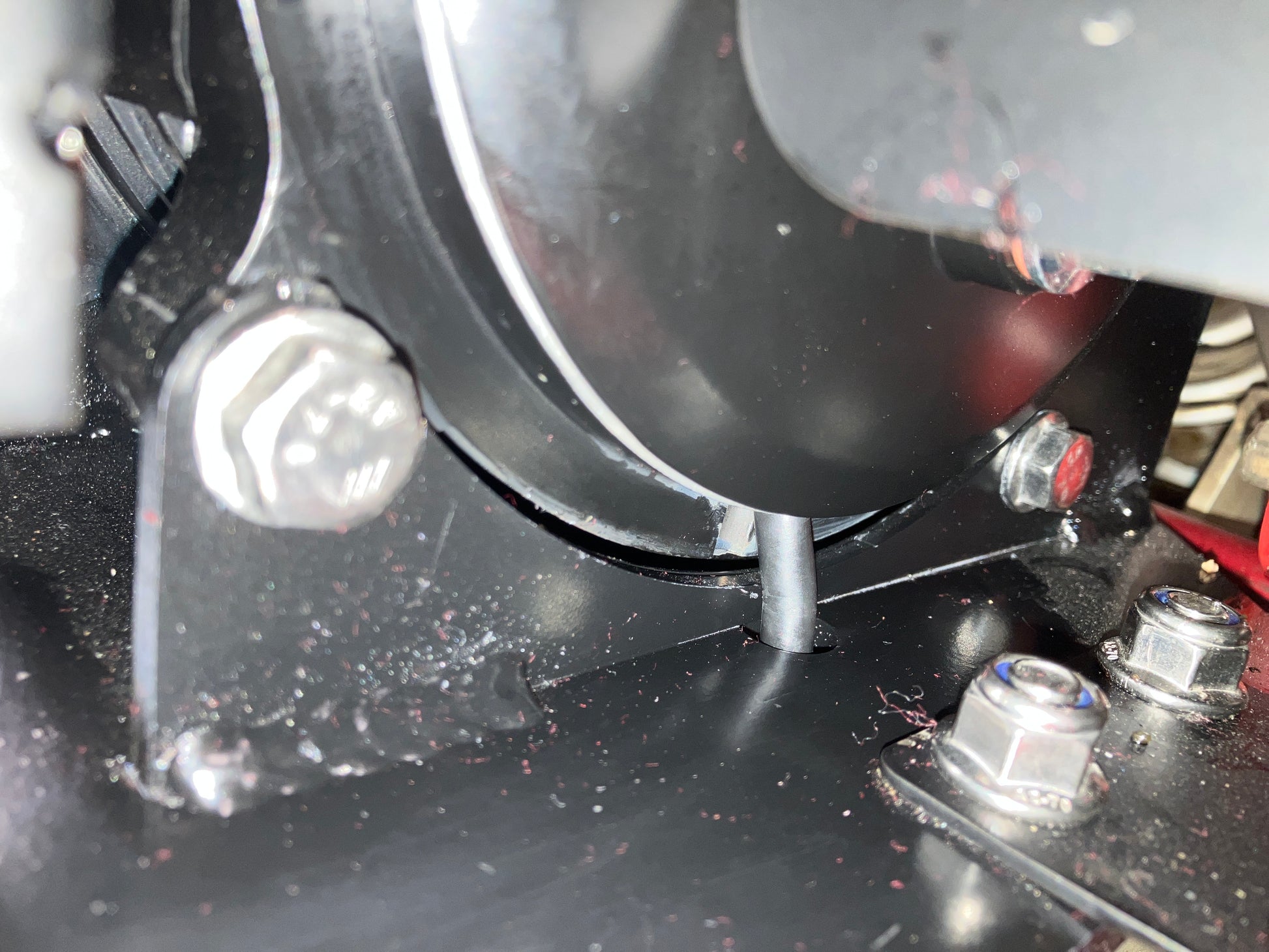

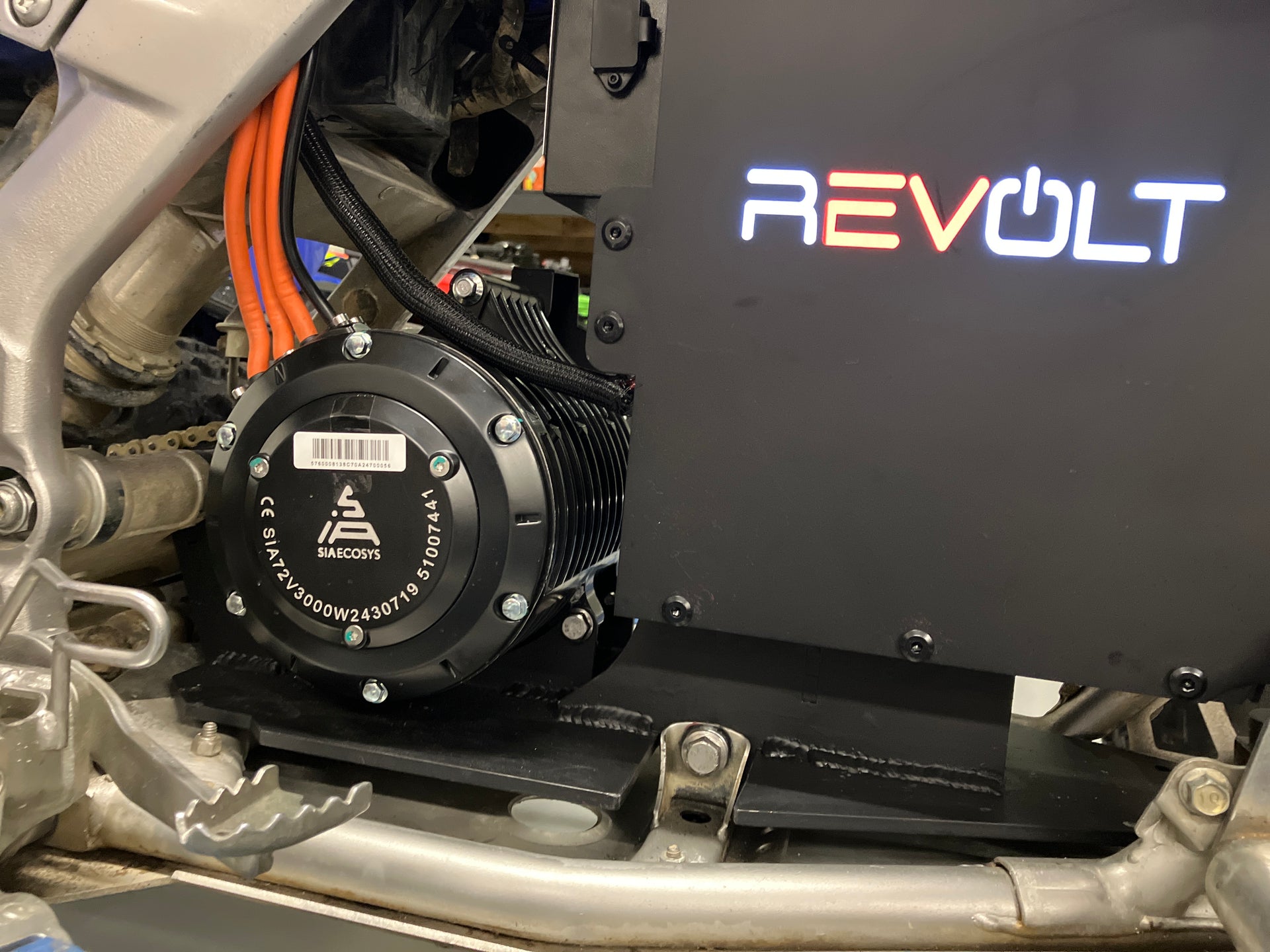

We use these mounts for our 660 Raptor Kit.   They are for mounting the QS138 v3 70 to a flat steel plate.   Welding required.

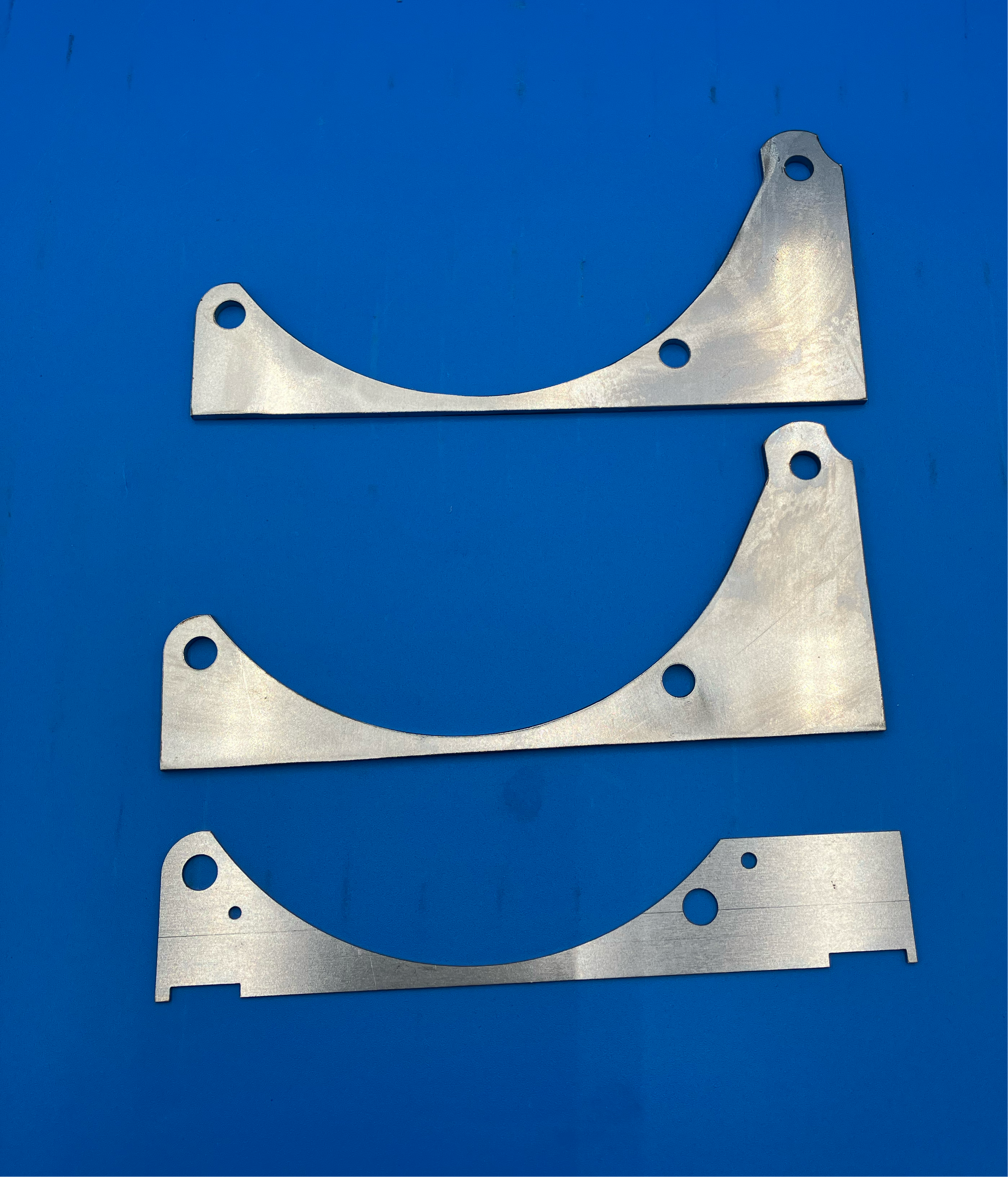

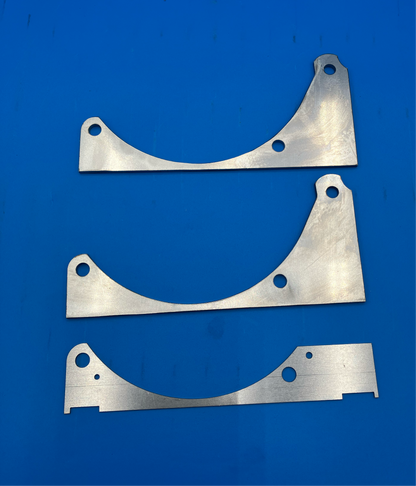

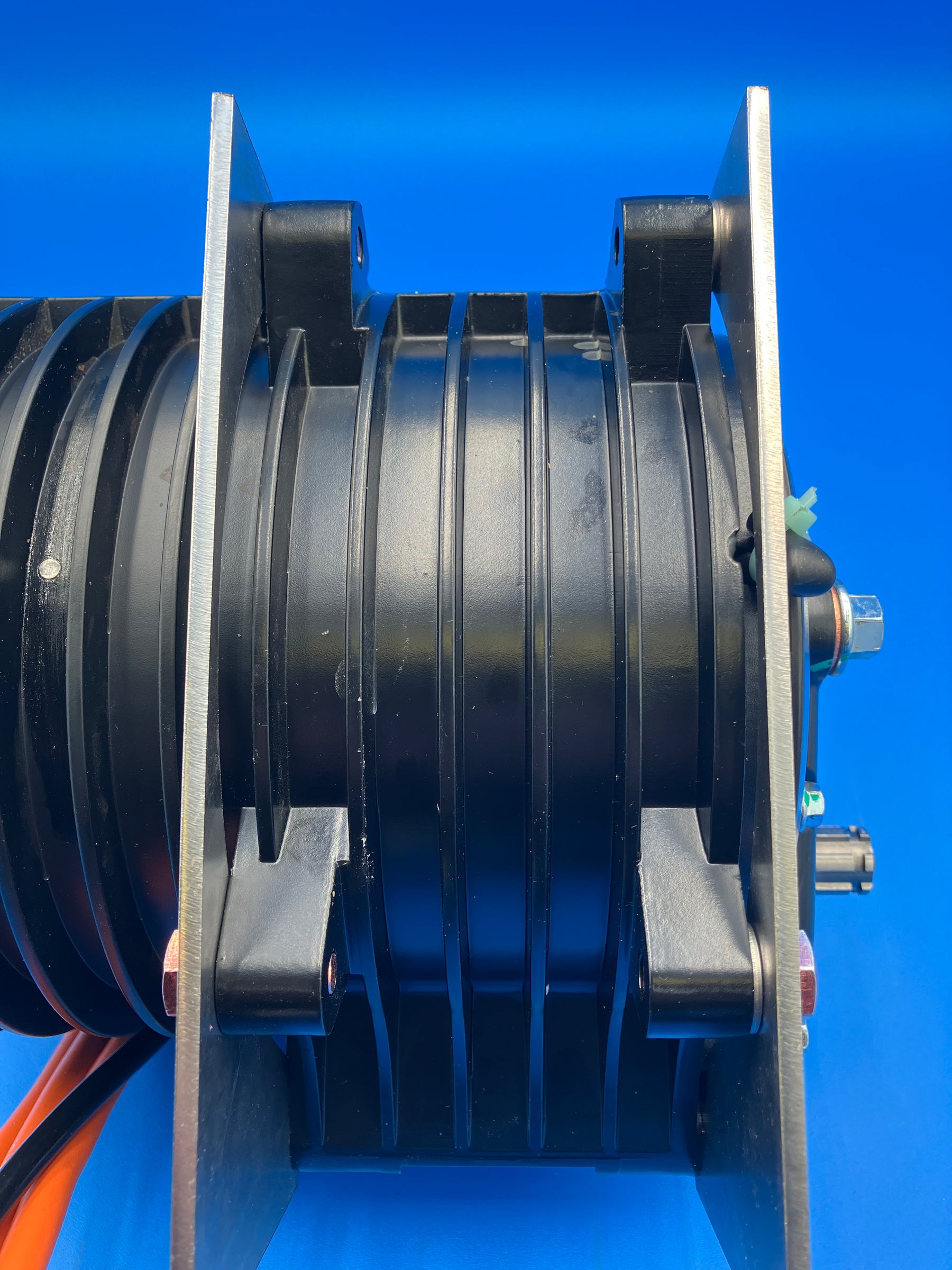

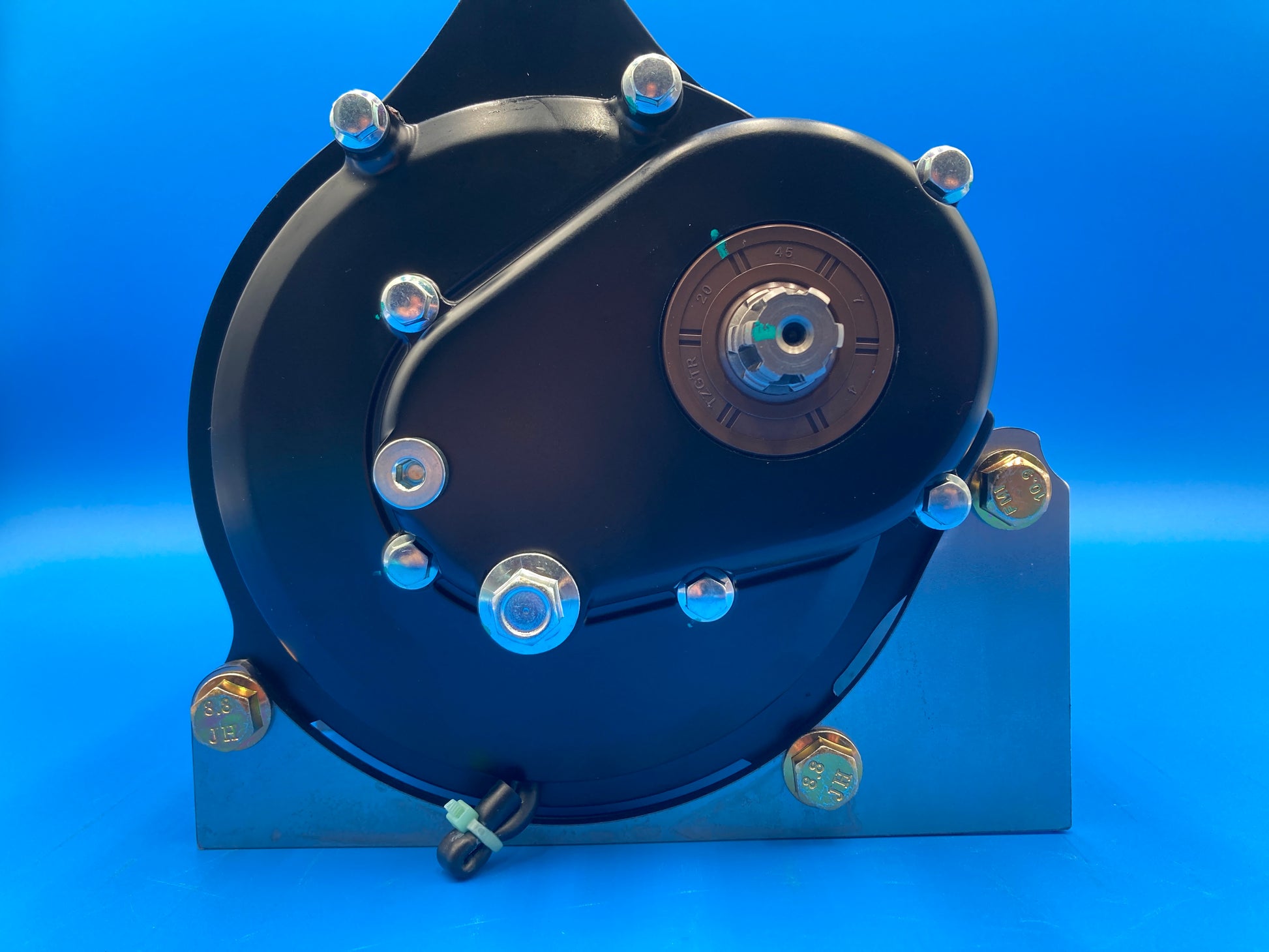

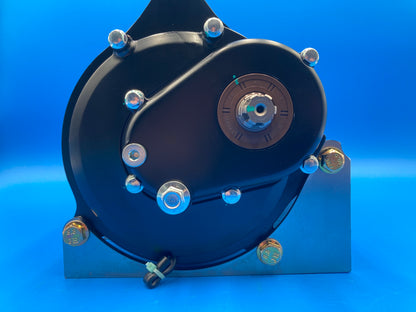

.135” thick 1008 mild steel.  Weld in place.   A .060” shim is included to go in between the motor and the mount on the sprocket side, on the two bottom tabs on the motor.  This allows the mount to sit flat on the motor as the upper mount sticks out .060” past the bottom mounts.  These mounts will position the center of the output shaft approximately 4.257” above the bottom plate.  Made in USA.

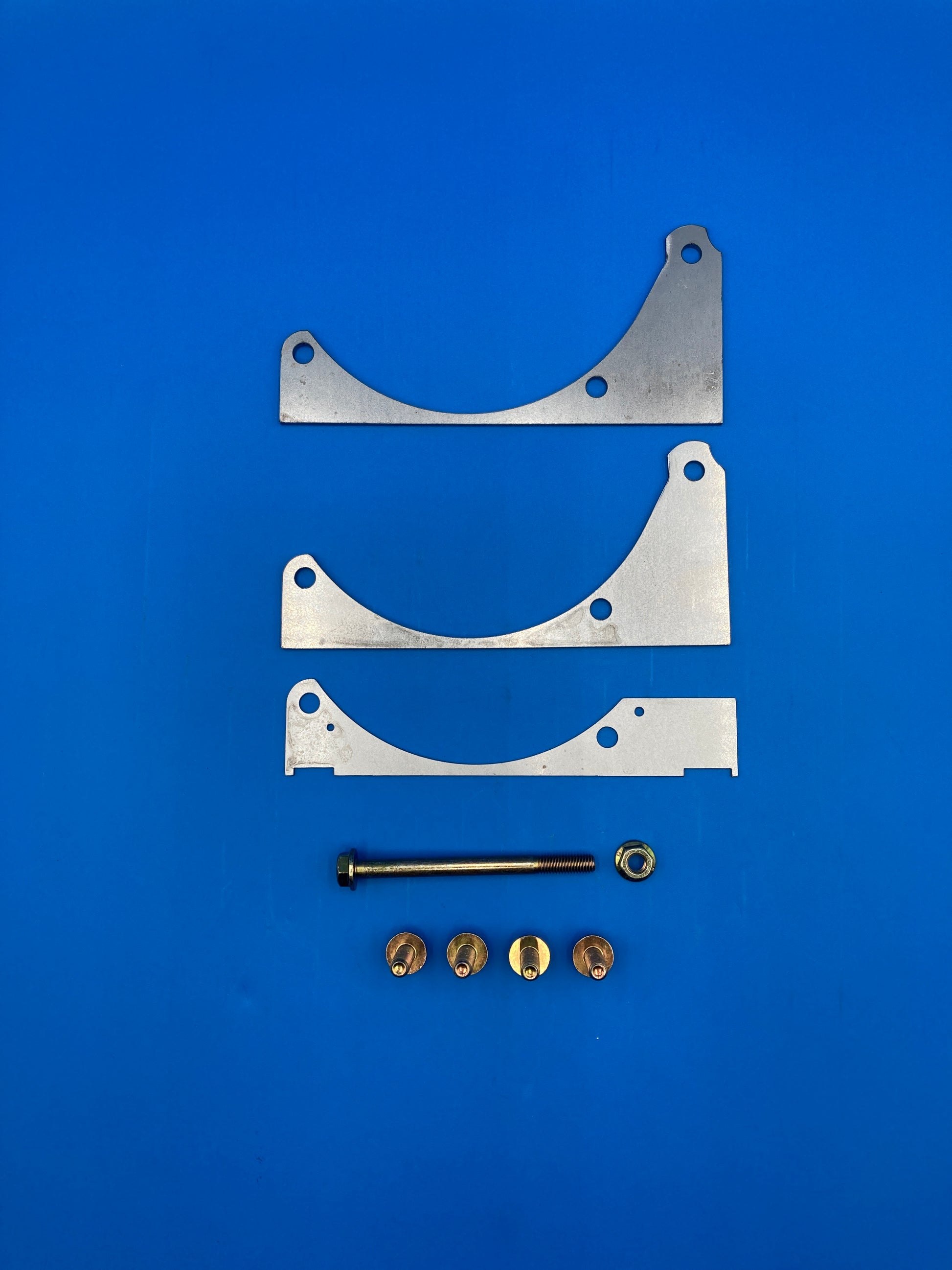

hardware NOT included:

4) m8-1.25 20mm long bolts

1) m8-1.25 110mm long bolt and locknut
