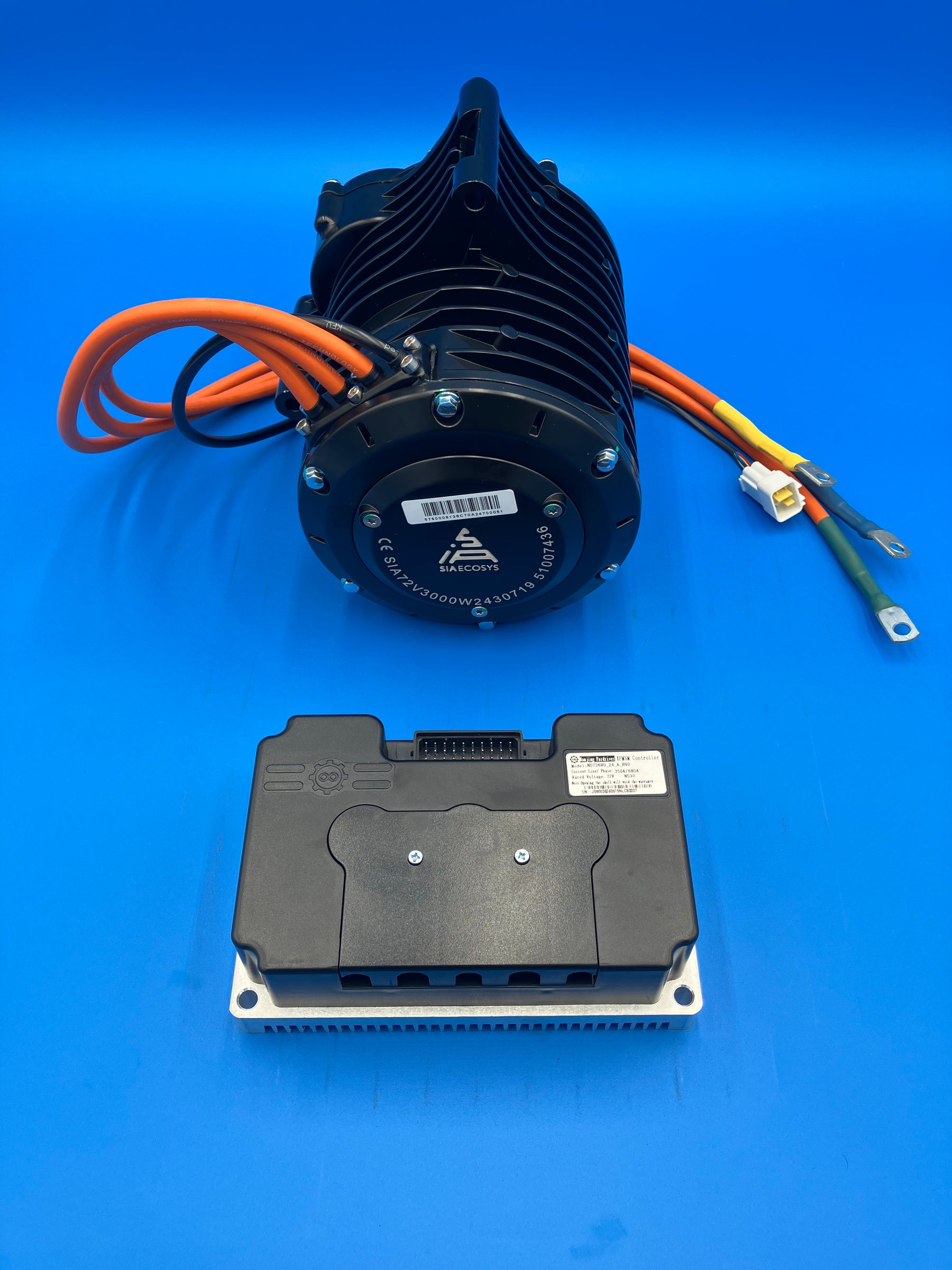

QS138 V3 70H motor and Fardriver 72680 controller combo. Save $50

MOTOR:

QS Motor  QS138 70h v3

New 2024 design.   PMSM.

5 pole pairs.

Temp Sensor #5 in Fardriver.

Hall type position sensors.

Set Fardriver to AN=10

Sprocket not included.  Uses a standard 17mm pit bike sprocket.

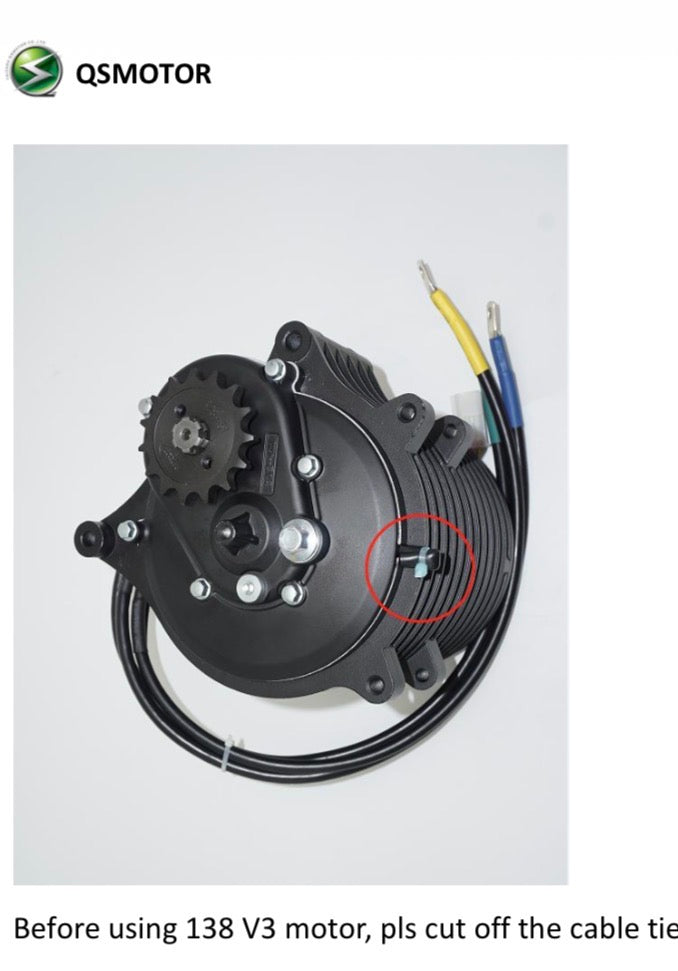

Be sure to remove zip tie from oil vent on bottom.   When changing oil use 85w-90 100ml.

Rated Power: 5500 watts continuous

Rated Voltage: 72 volts (nominal)

Controller:

Fardriver 72680 with Bluetooth

72 volts

680 max phase amps

350 max line amps

For PMSMs with hall sensors

**Torque battery and phase wire connections to 10-12 NM
